# How to set the D-Link DIR-612 as Repeater mode

<figure><img src="https://4142062250-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FAsNvP4j1V0u2MDOjtqo2%2Fuploads%2FGMnyj9PaSSlXzV3YSbGB%2Fimage.png?alt=media&#x26;token=3aa3636e-4870-490e-8b4a-6ad2a51fefb6" alt=""><figcaption></figcaption></figure>

1. Connect your PC to the DIR-612 router using an ethernet cable.

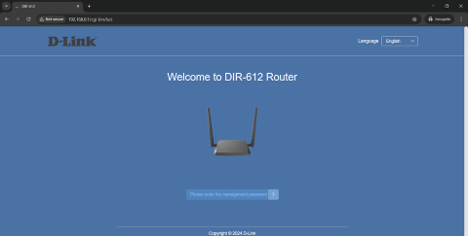

2. Access the router’s web interface by entering its IP address into a web browser on the address bar <http://192.168.0.1> then press enter.

<figure><img src="https://4142062250-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FAsNvP4j1V0u2MDOjtqo2%2Fuploads%2FURKW57fY5gtnu1CDjayL%2Fimage.png?alt=media&#x26;token=69bdb453-08ac-4f0b-a587-d3ca1f661d7a" alt=""><figcaption></figcaption></figure>

3. The page will be prompted to enter a username and password. The default username and the default password are:

   **Username:** Admin

   **Password:** (as printed on the device label bottom of the router)

   <mark style="color:$primary;">Note: If you have changed the password and cannot remember it, you will need to reset the router to factory defaults.</mark>&#x20;
4. &#x20;Once logged in, Click Internet at the top of the page, and then select **My Internet Connection is**: from the menu on the middle
5. Under **My Internet Connection is**, choose **Wifi extender** mode.

<figure><img src="https://4142062250-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FAsNvP4j1V0u2MDOjtqo2%2Fuploads%2FvQXnzAWrQ90Q2JnqJaIM%2Fimage.png?alt=media&#x26;token=71b69121-a8ac-48c0-bf86-b4f4c0760f24" alt=""><figcaption></figcaption></figure>

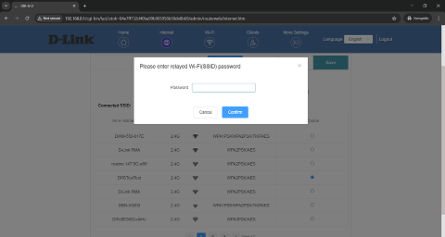

6. You need to key in the Wireless Network Password of the Main wireless network here and click on **Confirm**

<figure><img src="https://4142062250-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FAsNvP4j1V0u2MDOjtqo2%2Fuploads%2F4ednZv0BWMsfHr3RLevc%2Fimage.png?alt=media&#x26;token=d9ff95ef-f0ef-4200-9985-05ad952c2143" alt=""><figcaption></figcaption></figure>

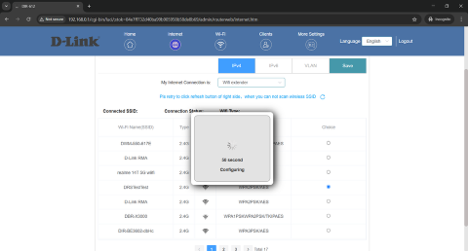

7. DIR-612 will reboot for 50sec once you click on **connect**. Log in to the admin page again by the IP getting from main router once reboot done, it will show **Connected Successfully**, you are now successfully setup the repeater mode for your DIR-612.

<figure><img src="https://4142062250-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FAsNvP4j1V0u2MDOjtqo2%2Fuploads%2F2R4akOu0mDGynBGzpamJ%2Fimage.png?alt=media&#x26;token=a04c1fb7-3a36-43c0-afb6-44d67fe62746" alt=""><figcaption></figcaption></figure>

<figure><img src="https://4142062250-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FAsNvP4j1V0u2MDOjtqo2%2Fuploads%2FEc4OBni4I865pDibihz1%2Fimage.png?alt=media&#x26;token=922ef04e-2716-4685-831a-809ba963fa46" alt=""><figcaption></figcaption></figure>

<h3 align="center">Final Topology of wireless Repeater</h3>

<figure><img src="https://4142062250-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FAsNvP4j1V0u2MDOjtqo2%2Fuploads%2FBrc6yJbcTLeFOx2ZTtKn%2Fimage.png?alt=media&#x26;token=79857815-5df7-4d25-87aa-fe7824e9c551" alt=""><figcaption></figcaption></figure>
