# How to setup Wi-Fi Mesh using Wired / Wireless Method

<figure><img src="https://4142062250-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FAsNvP4j1V0u2MDOjtqo2%2Fuploads%2F5glR4mRK82pDGfoeid9O%2FDPN-BE7200GR%20Mesh.jpg?alt=media&#x26;token=b0a83204-733d-49ff-8d1c-55946fb5b31b" alt=""><figcaption></figcaption></figure>

### How to setup Wired Mesh using DPN-BE7200GR (Network Cable Connection)

{% stepper %}
{% step %}
Power on both DPN-BE7200GR Router
{% endstep %}

{% step %}

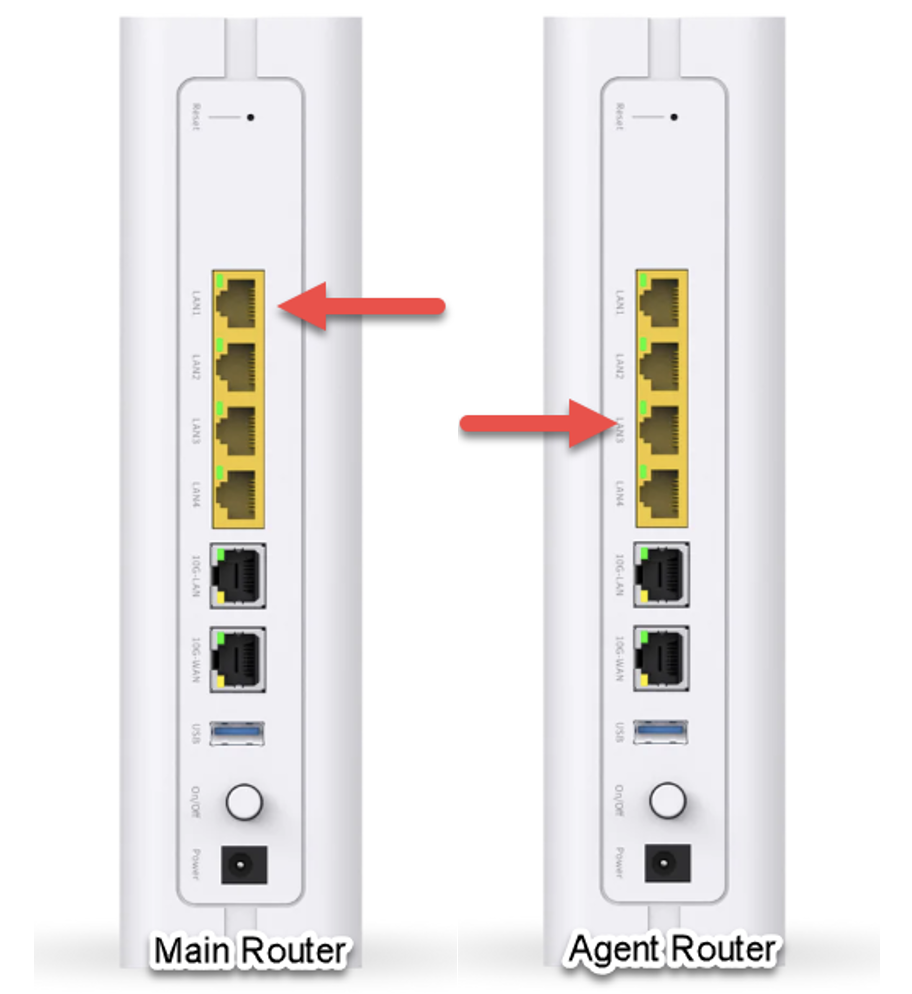

Plug the Ethernet Cable from Main Router’s LAN Port (1G/10G)   to the 2nd Router’s (Agent Router) LAN Port (1G/10G)

<figure><img src="https://4142062250-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FAsNvP4j1V0u2MDOjtqo2%2Fuploads%2Fr7q3Xk8xFXzRNH2M39iG%2FDPN-BE7200GR-1.png?alt=media&#x26;token=4cf9b1be-fdc4-4f49-859a-9c36741a8bf0" alt="" width="375"><figcaption></figcaption></figure>
{% endstep %}

{% step %}
Wait for the “NET” indicator to turn green on the Agent Router (with green indicator, the router is now on Wired Mesh)

<figure><img src="https://4142062250-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FAsNvP4j1V0u2MDOjtqo2%2Fuploads%2Fix78V2ejLj65HtpDAXxA%2FDPN-BE7200GR-2.png?alt=media&#x26;token=958e855a-844c-4a86-8546-008c9c9905fc" alt="" width="251"><figcaption></figcaption></figure>
{% endstep %}
{% endstepper %}

### How to setup Wireless Mesh using DPN-BE7200GR (Mesh Button)

{% stepper %}
{% step %}
Power on both DPN-BE7200GR Router       &#x20;
{% endstep %}

{% step %}

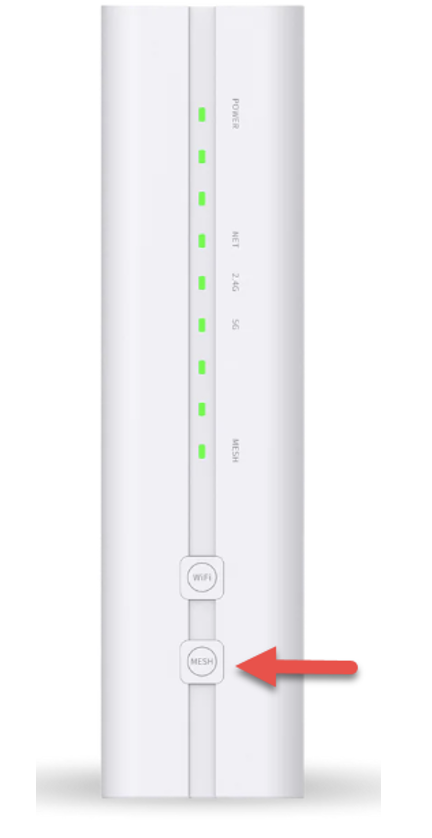

Press the “MESH” button on the Main Router for more the 5 seconds.

<figure><img src="https://4142062250-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FAsNvP4j1V0u2MDOjtqo2%2Fuploads%2F8Yi4kpsVUVRc6ftYyZi8%2FDPN-BE7200GR-3.png?alt=media&#x26;token=92c0cf87-6285-4cee-bb75-bbd98b6a9def" alt="" width="216"><figcaption></figcaption></figure>
{% endstep %}

{% step %}
The Main Router “Mesh” light will start blinking.
{% endstep %}

{% step %}
Next, press the “MESH” button on the Agent Router for more the 5 seconds
{% endstep %}

{% step %}

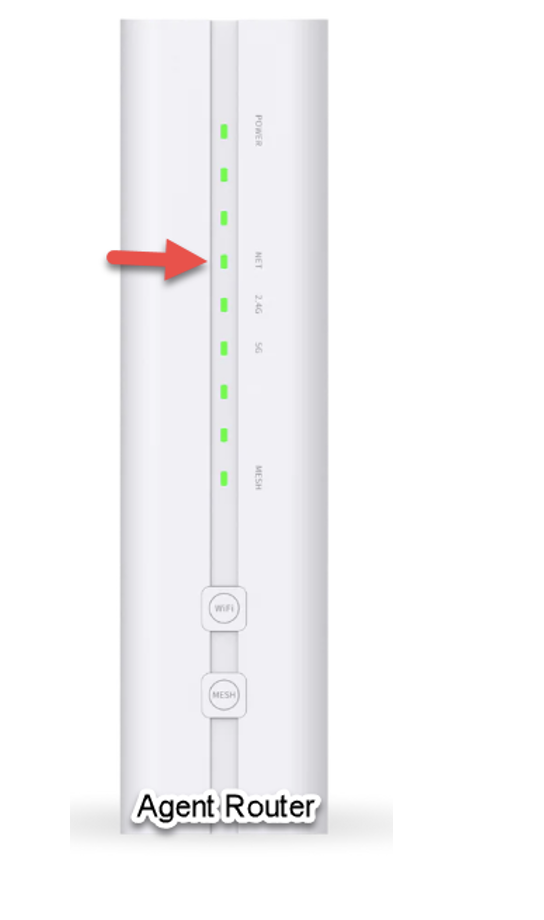

Wait for the “NET” indicator to turn green on the Agent Router (with green indicator, the router is now on Wireless Mesh)

<figure><img src="https://4142062250-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FAsNvP4j1V0u2MDOjtqo2%2Fuploads%2FklXgSj7BbpqWYu0y0noo%2FDPN-BE7200GR-4.png?alt=media&#x26;token=9ec65c00-2ef4-41a9-bd02-33eee9357b63" alt="" width="272"><figcaption></figcaption></figure>

{% endstep %}
{% endstepper %}
